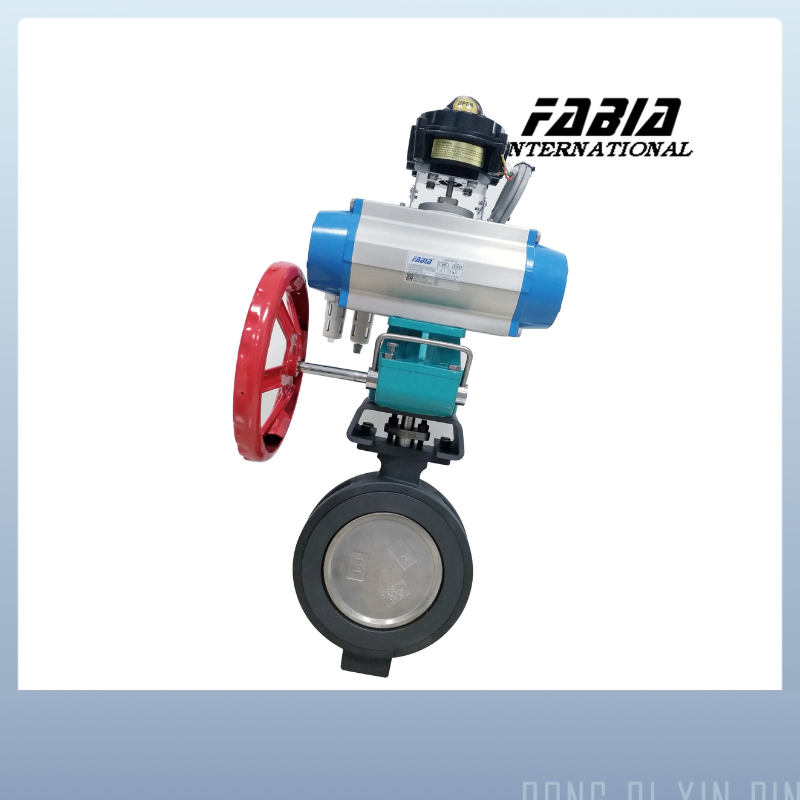

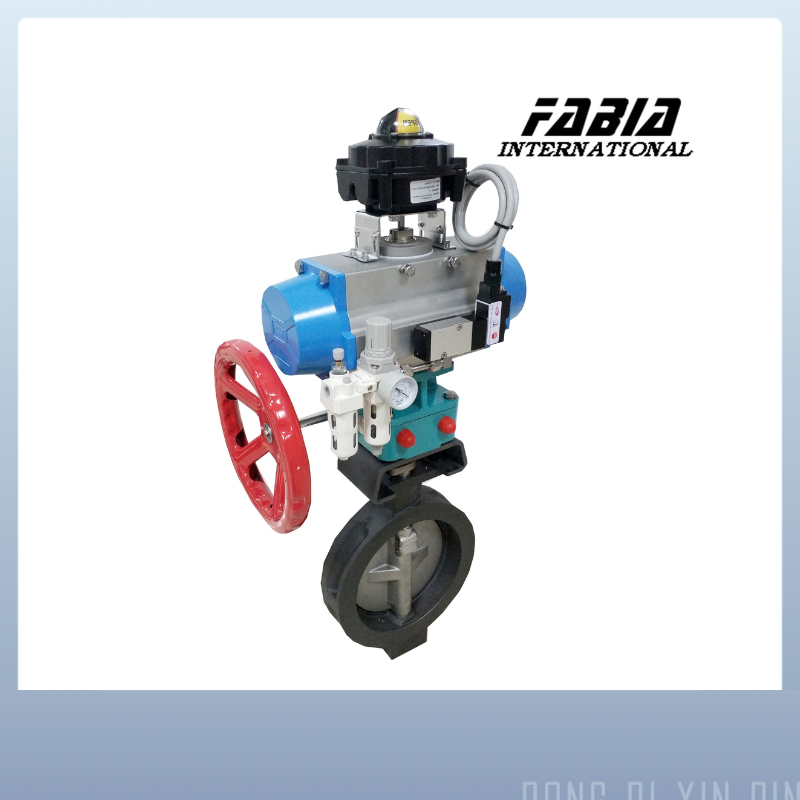

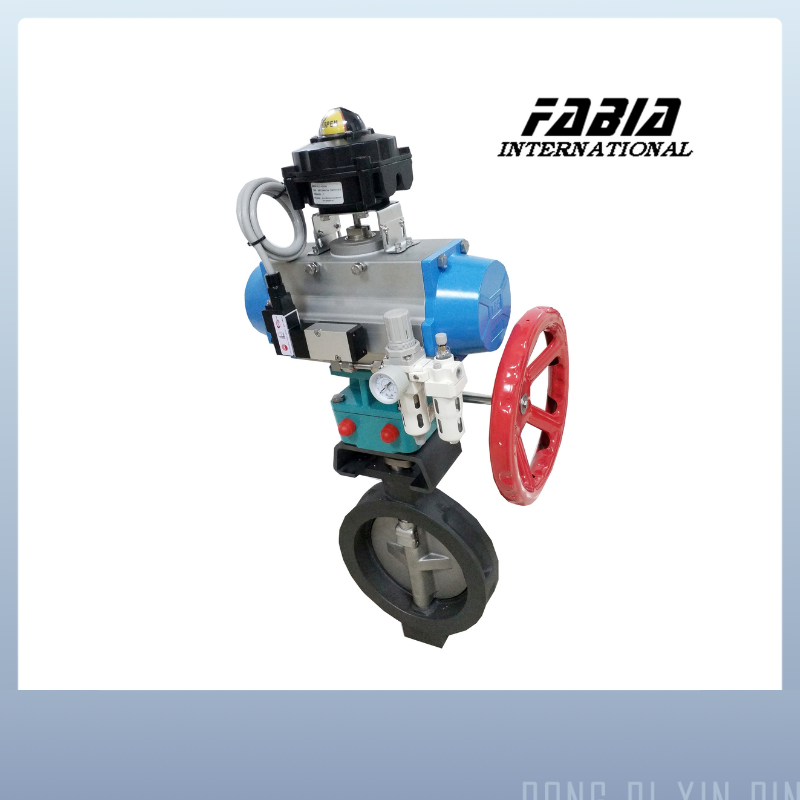

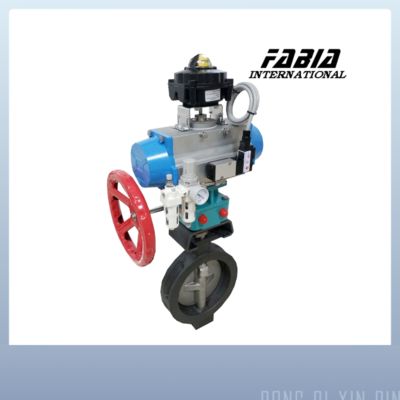

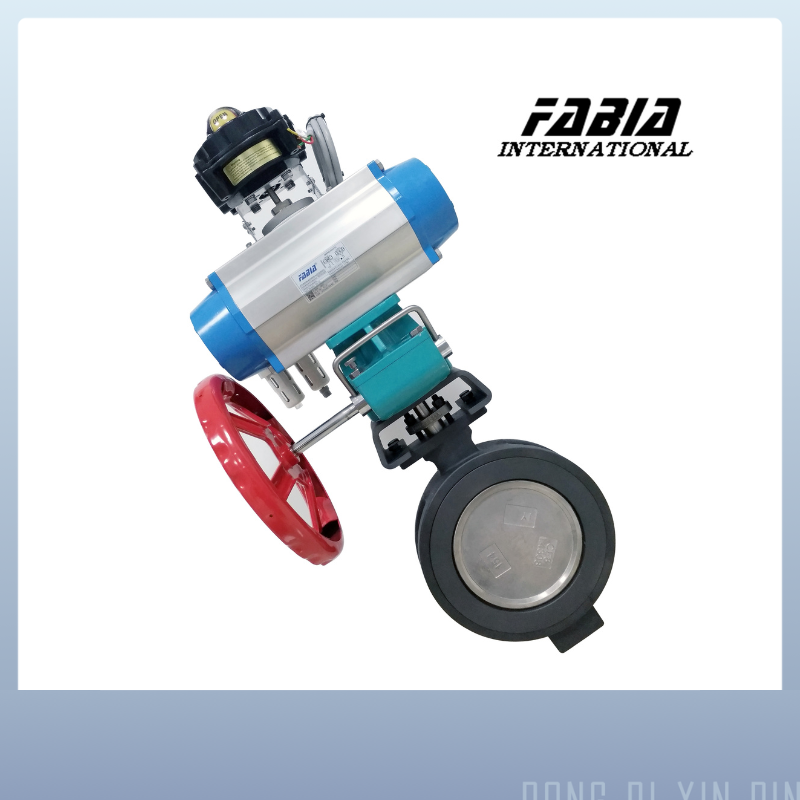

Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer

  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
Lugar de origen PORCELANA
Nombre de la marca FABIA
Certificación ISO9001,CE,CCS,DNV
Número de modelo 1/8 pulgadas ～ 36 pulgadas
Documento Manual del producto PDF
Cantidad de orden mínima 1 set
Precio Negociable
Detalles de empaquetado Cartones/cajas de madera
Tiempo de entrega 15-30 días de trabajo
Condiciones de pago L/C, D/A, D/P, T/T, Moneygram, Western Union
Capacidad de la fuente 100-1000 set por semana

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre del producto Válvula de mariposa con abrazadera neumática Tipo de válvula Mariposa
Material Acero carbono Impulsión de la válvula Neumático
Tipo de conexión de la válvula conexión de la abrazadera Diámetro de la válvula de mariposa DN15-600
Aplicación de válvula Agua/aceite/gas Presión de la válvula PN10 a 16
Sello de válvula PTFE y EPDM Temperatura de la válvula -30℃~+150℃
Deja un mensaje
Descripción de producto

FABIA  Hard Sealed Pneumatic Butterfly Valve Small Fluid Resistance


1. Description:


Butterfly valve is suitable for food. Medicine. Petrochemicals. A power plant. A steel mill. Industrial environmental protection water treatment and high-rise buildings.


Best device for regulating flow and cutting off fluid on the supply and drainage pipe.


2. Specification:


FABIA Valve Parameter List
Valve type: Small Fluid Resistance Hard Sealed Pneumatic Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........


3. Features:


  • Small fluid resistance, large effective flow area when the large diameter pneumatic disc valve is fully opened, opening and closing quickly and labor saving, the disc can be rotated 90 angles to complete the opening and closing,
  • Because the medium force of the disc hand on both sides of the rotating shaft is close to equal, and the torque generated is opposite, so the opening and closing torque is small, and a good seal can be achieved under low pressure.
  • Sealing materials of the disc valve are diacene rubber , fluororubber , food With rubber, lined with tetrafluoroethylene, the sealing performance is good, and the hard seal disc valve is a soft and hard laminated metal sheet with the heavy advantages of metal hard seal and elastic seal, and has excellent sealing performance at low temperature.





Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer 0

Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer 1
