Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant

  • Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant
  • Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant
  • Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant
  • Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant
  • Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant
Lugar de origen China.
Nombre de la marca FABIA
Certificación ISO9001,BV,CCS,DNV
Número de modelo 2 pulgadas 87 pulgadas
Documento Manual del producto PDF
Cantidad de orden mínima 1 juego
Precio Negociable
Detalles de empaquetado Cajas de cartón o de madera
Tiempo de entrega 15 a 30 días hábiles
Condiciones de pago Los datos de las operaciones de transferencia de dinero a través de los servicios de transferencia d
Capacidad de la fuente 100-1000 juegos por semana

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre del producto Válvula neumática de fumeo de mariposa de alta temperatura Aplicación de las válvulas Ventilación
Material de las válvulas Acero inoxidable Conexión de la válvula Las demás
Operación de válvula Las demás: Certificación de las válvulas BV, DNV, CCS
Presión de las válvulas ≤0.25MPa Sello de válvula Acero inoxidable
Tamaño de la válvula 2-87 pulgadas Temperatura de la válvula 500℃
Tipo de válvula Mariposa
Resaltar

Válvula de mariposa de humo de alta temperatura

,

Válvula de mariposa de humo de la central eléctrica

,

Válvula de mariposa de humo de la central térmica
Deja un mensaje
Descripción de producto

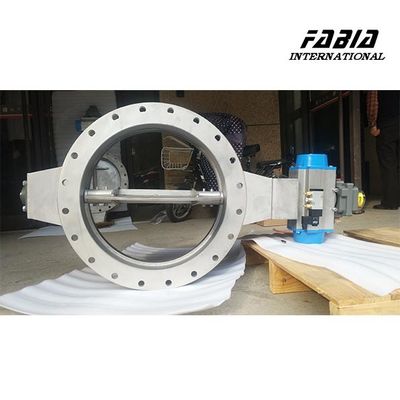

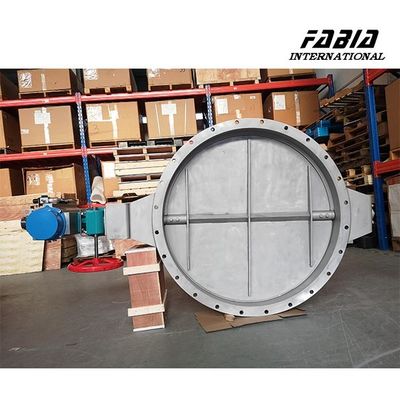

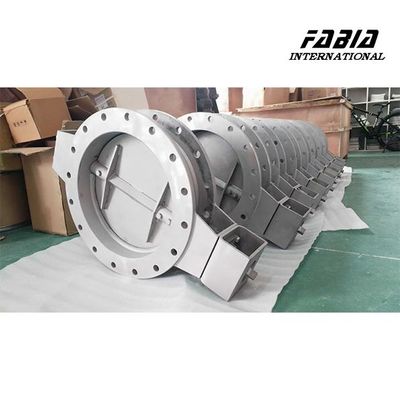

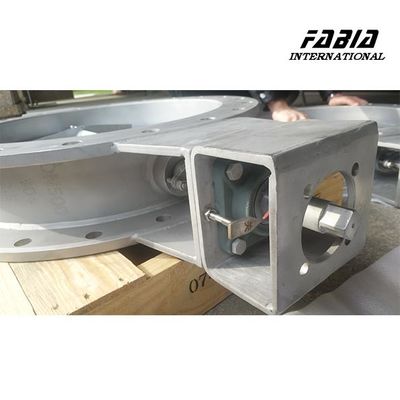

Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant

1. Description:

In the Marine field, FB-D-73 series butterfly valves are mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen

oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.

In addition, FB-D-73 series butterfly valves have also been widely used in the road industry, such as steam desorption ads- orption pipes in VOCs and some other gas pipelines that require strict leakage rates.



2. Specification:



FABIA Valve Parameter List
Valve type: Flange type heavy-duty ventilation butterfly valve
Size: 2inch ～ 87 inch
Material:

316/316L/304/304L/ Corten
Connection type: Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: ≤0.25Mpa
Temperature: -≤500℃
Model: FB-D-73..........



3. Features:



  • three eccentric structure,wideoblique valveseat design
  • Suitable for low pressure air or other gas flow, pressure control and high temperature gas
  • Zero air leakage
  • CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
  • Strong Corrosion Resistance: Manufactured with high-quality corrosion-resistant materials, suitable for harsh operating environments.
  • Precise Control: High-precision control system ensures accurate adjustment of gas flow.
  • Excellent Sealing: Well-designed sealing structure reduces leakage rate.
  • Fast Response: Quick opening and closing enhance system response speed.
  • Simple Structure: Easy maintenance minimizes downtime.
  • High Temperature Resistance: Able to withstand high-temperature conditions reliably.



 Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant 0Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant 1Pneumatic High Temperature Smoke Butterfly Valve Good Regulation Performance For Power Station And Thermal Power Plant 2
