Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry

  • Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry
  • Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry
  • Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry
  • Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry
  • Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry
Lugar de origen China.
Nombre de la marca FABIA
Certificación ISO9001,BV,CCS,DNV
Número de modelo 2 pulgadas 100 pulgadas
Documento Manual del producto PDF
Minimum Order Quantity 1 set
Precio Negociable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Product Name ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Valve Application Ventilation
Valve Material Stainless steel Valve Connection Flanged
Valve Operation Pneumatic Valve Certification BV,DNV,CCS
Presión de las válvulas ≤0.25MPa Valve Seal Stainless steel
Valve Size 2-100 inch Valve Temperature 500℃
Valve Type Butterfly
Resaltar

Válvula neumática de mariposa ICER

,

Válvula de mariposa de la industria de protección del medio ambiente

,

Válvula neumática de mariposa de control inteligente
Deja un mensaje
Descripción de producto

Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry

1. Description:

ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve is mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen

oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.

In addition, FB-D-3 series butterfly valves are also widely used in the road industry, such as the exhaust gas exhaust pipe

system produced by the boiler in steel smelting, the catalytic combustion equipment pipe system in VOCs (RTO combustion furnace) and the exhaust gas pipe system produced by other combustion equipment.



2. Specification:



FABIA Valve Parameter List
Valve type: Flange type heavy-duty ventilation butterfly valve
Size: 2inch ～ 100 inch
Material:

316/316L/304/304L/ Corten
Connection type: Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: ≤0.25Mpa
Temperature: -≤500℃
Model: FB-D-3..........



3. Features:



  • Simple and light in structure
  • Suitable for low pressure air or other gas flow, pressure control and high temperature gas
  • the main structural components of the valve are welded
  • CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
  • High Efficiency Emission Reduction: Optimized design significantly reduces ship emissions, complying with stringent environmental regulations.
  • Durable and Reliable: Made of high-quality materials with a robust design to ensure long-term stable operation, reducing maintenance frequency and costs.
  • Smart Control: Equipped with advanced control systems for automated operation, enhancing operational efficiency and safety.

  • Multiple Safety Guarantees: Incorporates multiple layers of safety protection mechanisms to ensure safe and reliable valve operation.

  • Global Standard Certification: Certified by international authorities, ensuring product quality and performance meet global standards.

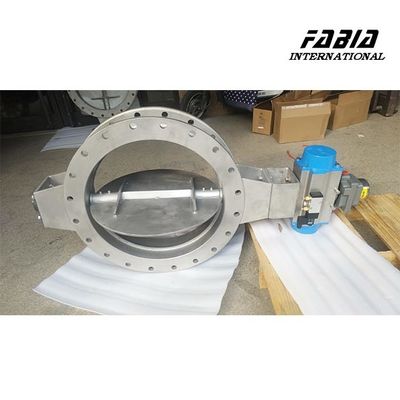

Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry 0

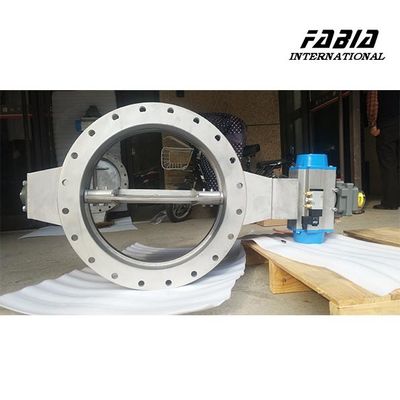

Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry 1

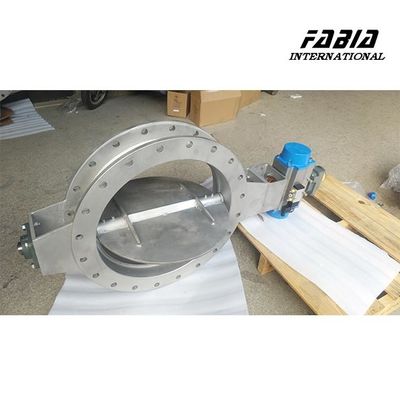

Pneumatic ICER Diesel Engine Exhaust Gas Treatment Butterfly Valve Smart Control For Environmental Protection Industry 2
